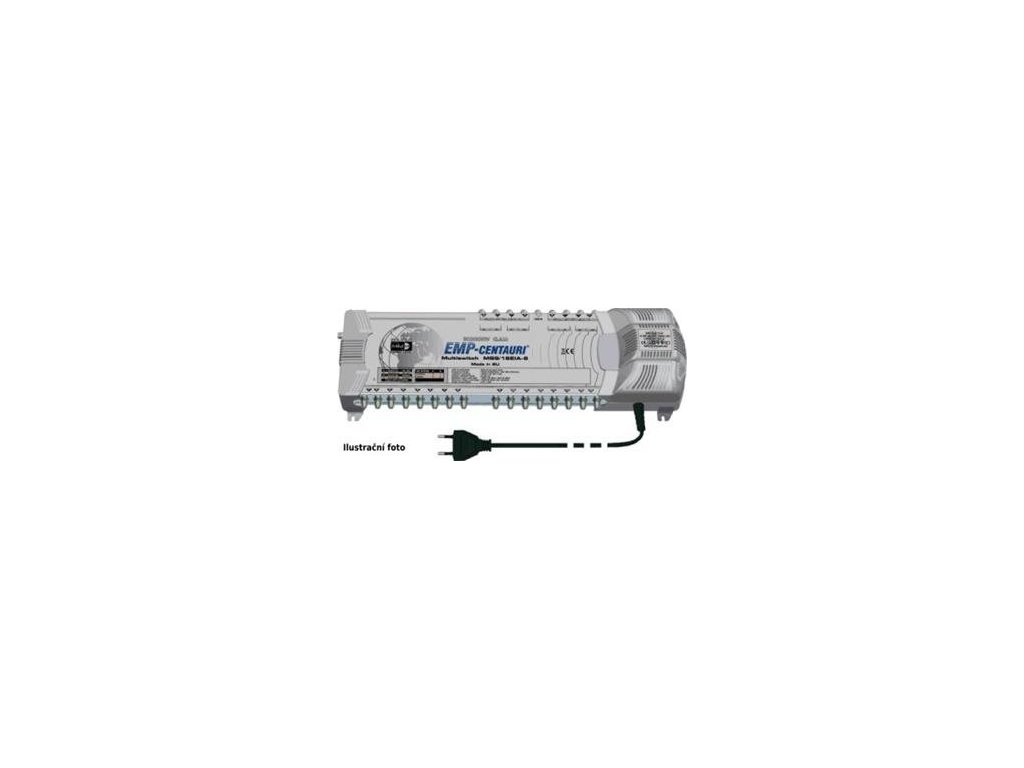

Multiswitch EMP MS13/20EIA NEW LINE multipřepínač

Multiswitch MS 13/20 12 vstupů pro sat + 1 vstup pro terestriál Frequency range LNB inputs 950-2300 MHz Terr. input 5-862 MHz (passive) 40-862 MHz (active) Outputs 5-2300 MHz (passive) 40-2300 MHz (active) Control DiSEqC 1.0 (2.0) commands Insertion loss Sat. 4 dB avg Terr. passive 24 dB avg Terr. active 9 dB avg Sat. inputs isolation Between V/H polarisations 20 dB min Between low/high bands 20 dB min Between sat. systems 25 dB min Maximum input level* Sat. 90 dBµV avg Terr. 110 dBµV avg (passive) 90 dBµV avg (active) Maximum output level* Sat. 86 dBµV avg Terr. 86 dBµV avg (passive) 81 dBµV avg (active) Power consumption From each receiver 75 mA (18 V) From internal power supply 4.5 W (passive) 6.5 W (active) + LNB Dimensions (w,d,h) 47.0 x 15.2 x 8.7 cm (power cord length 130 cm) Temperature range -30 ~ +70 °C
